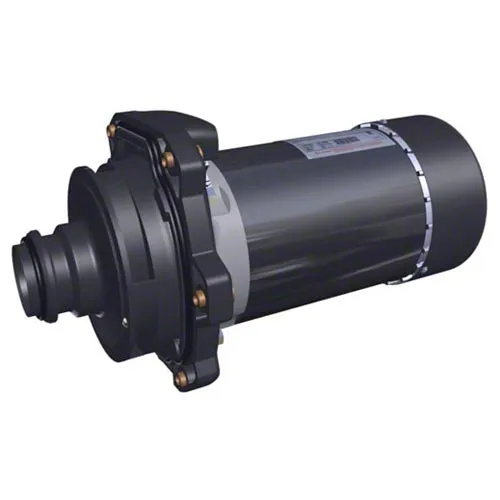

Power End Assembly for the following Pumps:
- Hayward TriStar 2 Horsepower Pumps (Energy Efficient and Full Rated Models)
Power End Includes:
- 2 Horsepower Motor SPX3220Z1BER
- Diffuser Screws SPX3200Z1
- Diffuser O-Ring SPX4000Z1
- Diffuser SPX3200B3
- Impeller Screw SPX3200Z1
- Impeller Ring SPX3021R
- Impeller SPX3205C
- Shaft Seal Assembly SPX3200SA
- Housing O-Ring SPX3200T
- Seal Plate SPX3200E
- Housing Insert and Seal Plate Spacer Kit SPX3200Z211
- Housing Bolts SPX3200Z5
- Motor Bolts SPX3200Z5
Hayward SPX3220Z1PE
